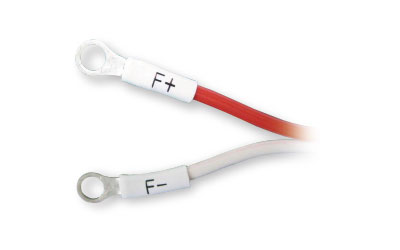

    Wire harness for BOXCOOL

    Wire harness for BOXCOOL

    Wire harness for BOXCOOL

    Wire harness for BOXCOOL

    配線・パーツ






    Dimensional drawing

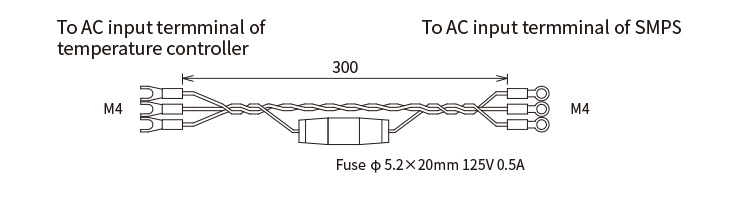

    AC wiring harness WH-A-M4-2

    外形寸法図

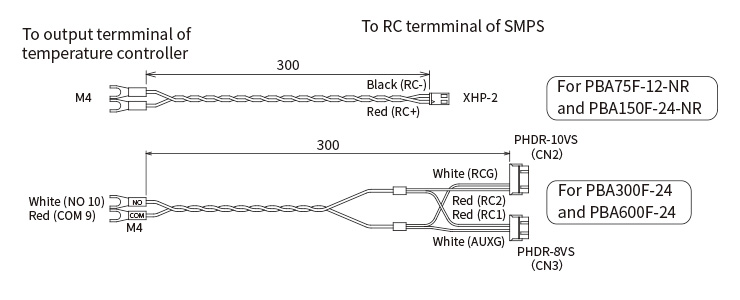

    Temperature controller wiring harness WH-C2

    外形寸法図



    外形寸法図

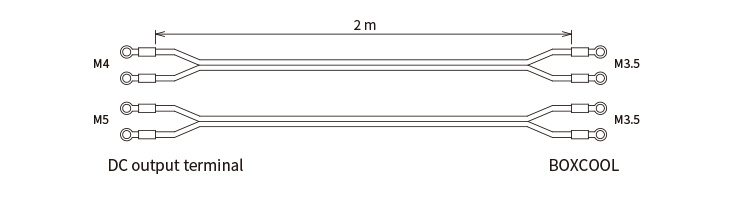

    DC wiring harness WH-P-M4-2, WH-P-M5-2, WH-F-M4-2, WH-F-M5-2

    外形寸法図



    Part number Lead wire color Ring terminal on DC output side
    WH-P-M4-2 Red and Black M4
    WH-P-M5-2 Red and Black M5
    WH-F-M4-2 Red and White M4
    WH-F-M5-2 Red and White M5



    Cautions

    ・This product is specifically designed for the thermoelectric cooler BOX COOL products. Do not use it for any other purposes.
    ・Do not use this product in a place where flammable or corrosive gasses, oil fume or any matters that can destroy insulation generate or permeate.
    ・Indoor use only.
    ・Make sure that the packaging is not damaged on delivery. Any packaging damage can lead to breakdown of the product. Please contact us immediately if any damage is found.


    Gallery

    Wire harness for BOXCOOL
