    For Clean Rooms　High pressure type - AT3

    For Clean Rooms　High pressure type - AT3

    For Clean Rooms　High pressure type - AT3

    For Clean Rooms　High pressure type - AT3

    Catalog CAD 2D, 3D

    Sucks up fallen particulates by high pressure For clean room use

    Features

    Environment of use Type Specifications
    Clean rooms High pressure Operation panel Remote operation Quick detachable flange

    Certificates/Approvals

    EU RoHS China RoHS CE UL CSA PSE






    Model/Specifications

    Model ODU-080HP-AT3 ODU-1200HP-AT3
    Max. air volume 2.2 m3/min 5.5 m3/min
    Max. static pressure 9.1 kPa 13.5 kPa
    Collection efficiency Min. 99% (for 0.3μm or larger particles) Min. 99.97% (for 0.3μm or larger particles)
    Rated voltage (50/60Hz) Single phase, 100VAC Single phase, 200VAC
    Rated current 6.9 A 9.5 A
    Working temperature 0 to ＋40℃
    Working humidity Less than 80%RH, free from condensation
    Noise 70 dB(A) 77 dB(A)
    Max. intake temperature ＋40℃
    Conformity to standard Environmental standard RoHS
    Dimensions (mm) W260×H274×D335 W310×H351×D537
    Weight 10.0 kg 26.7 kg
    • Supply voltage should be as specified above with permissible fluctuations of 10%.



    Structure

    構造



    ①Primary filter
    A filter pack consisting of five layer nonwoven polypropylene fabric. Each layer has different air permeability, and thus filter is not easily clogged. Unlike paper-made filter, not easily tears.

    ②Secondary filter
    Consists of a nonwoven polypropylene fabric filter formed into pleated shape with a frame made of ABS. More than 99% of 0.3 μｍ or larger particles can be removed at this stage.

    ③Tertiary filter
    This filter collects fine particles uncollected in the 1st and 2nd stages or generated in the fan motor chamber.
    For ODU-080HP-AT3, the same filter with the secondary filter is used to meet cleanliness class 100,000 to 10,000 (1,000 to 100 when the HEPA filter is attached).
    For ODU-1200HP-AT3, a HEPA filter is used as standard to meet cleanliness class 1,000.

    Operation panel

    Displays suction pressure.

    操作パネル



    Remote control

    By connecting an optional remote cable, remote operation is enabled.

    Remote control

    Remote cable entry
    　on dust collector side

    ・ON/OFF switching
    ・Change of capacity level
    ・Enables to output the signals of operation pressure, filter clogging, operation and abnormality
    1. Operation input signal　　
    2. Operation pressure output signal (1-5 VDC)
    3. Low air volume signal
    4. Remote operation input signal
    5. Operation output signal　
    6. Low pressure output signal
    7. Capacity level change input signal (0-5 VDC)
    8. GND



    Product lineup

    Contents of page



    ODU-080HP-AT3

    080HP



    Max. air volume

    2.2m3/min 　

    Max. static pressure

    9.1kPa　

    A complete set of supply

    DUST CUBE : 1 unit　Power cable : 3m long　Instruction manual : 1 copy

    Performance curve

    性能曲線



    Dimensional drawing

    外形寸法図



    Maintenance parts

    メンテナンス品・オプション



      Primary Secondary/Tertiary Tertiary (option)*1
    Filter name Filter pack High performance filter HEPA filter
    Part number FB-25 CHF-2525-50 HEP-2525-50
    Collection rate Min. 95％ for 45μm Min. 99％ for 0.3μm Min. 99.97％ for 0.3μm
    Dimensions H250×W300 H250×W250, 50 thick H250×W250, 50 thick
    Frame material － ABS Aluminum
    Filter material Polypropylene and cardboard Polypropylene Glass fiber
    Q'ty per package 5 pcs/set 1 pc.

    Option

    Remote cable Length
    RC-03M 3 m
    RC-05M 5 m



    Detachable flange Duct diameter
    FRJ-D-38-35-92 Ø38
    FRJ-D-50-35-92 Ø50


    ODU-1200HP-AT3

    1200HP



    Max. air volume

    5.5 m3/min 　

    Max. static pressure

    13.5 kPa　

    A complete set of supply

    DUST CUBE : 1 unit　Power cable : 3m long　Instruction manual : 1 copy

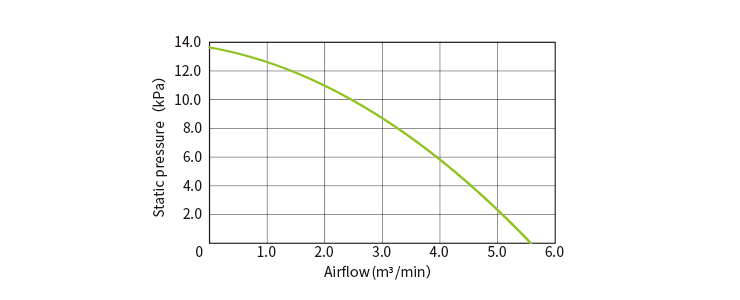

    Performance curve

    性能曲線



    Dimensional drawing

    外形寸法図



    Maintenance parts

    メンテナンス品



      Primary Secondary/Tertiary Tertiary (option)*1 -
    Filter name Filter pack High performance filter HEPA filter Motor cooling filter
    Part number FB-30 CHF-3030-50 HEP-3030-69 CHF-1293-33
    Collection rate Min. 95％ for 45μm Min. 99％ for 0.3μm Min. 99.97％ for 0.3μm Min. 99.97％ for 0.3μm
    Dimensions H300×W300 H300×W300, 50 thick H300×W300, 69 thick H123×W93, 34 thick
    Frame material － Polypropylene Aluminum Aluminum
    Filter material Polypropylene and cardboard Polypropylene Glass fiber Glass fiber
    Q'ty per package 5 pcs/set 1 pc.
    *1 To attach HEPA filter, use of the optional exhaust duct cover CV-1200HP-HEP is necessary.

    Option

    Remote cable Length
    RC-03M 3 m
    RC-05M 5 m



    Detachable flange Duct diameter
    FRJ-D-38-35-108 Ø38
    FRJ-D-50-35-108 Ø50
    FRJ-D-65-35-108 Ø65



    Cautions

    ・DUST CUBE is designed for inhaling common dust or odor. Never use this product for inhaling the following substances.
    　- Flammable substances including gasoline, thinner, benzine, kerosene and organic solvent.
    　- Explosive substances such as aluminium, magnesium, titanium, zinc or epoxy as well as materials ridden with those substances
    　- Dusts containing sparks generated by high-speed cutter, grinder or other machinery
    　- Cigarette smoke, and
    　- Liquid like water, oil and chemicals

    ・Do not use this product in a place where flammable or corrosive gasses or any matters that can destroy insulation generate or permeate.
    ・This product is for indoor use only.
    ・The site of use should be free from vibration and impact.
    ・Make sure that the packaging is not damaged on delivery and contact your supplier, if any.

    Gallery
